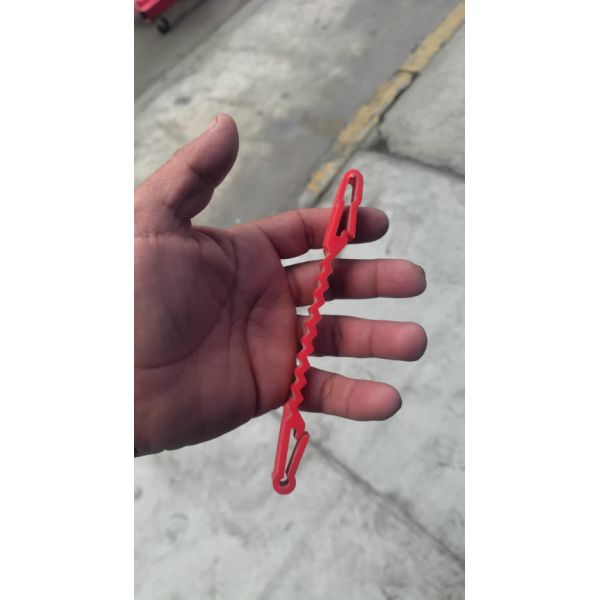

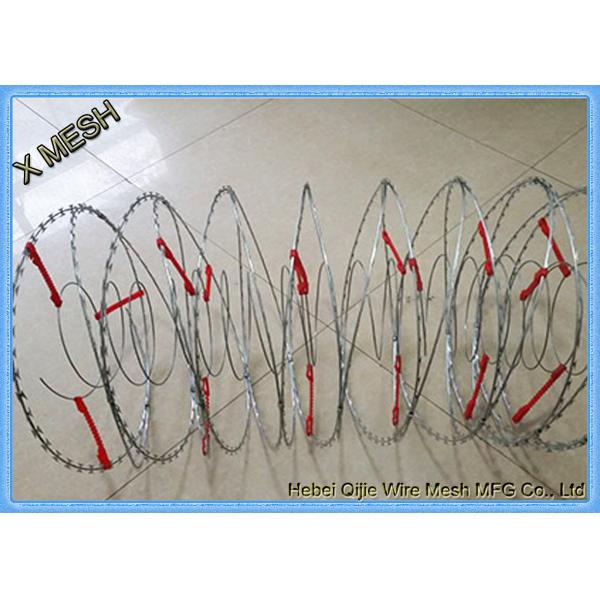

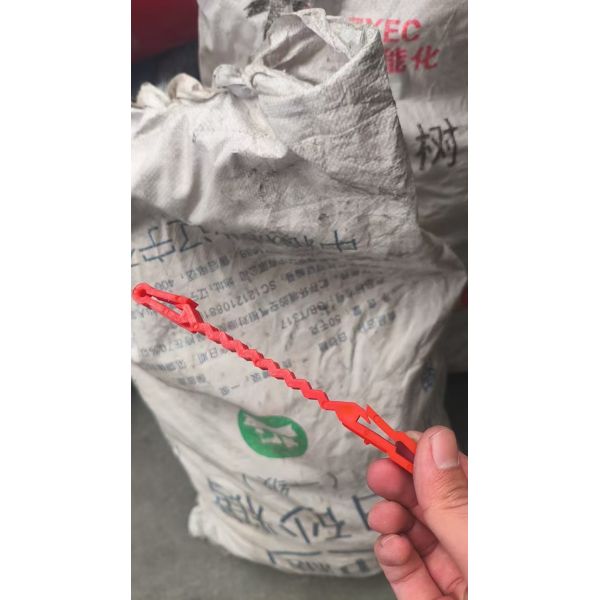

Red Plastic Support Clips That Go Between The Concertina Wire And The Wire
Our electric blade fence line was welcomed by many electronic fence construction units once it is launched!
Blade thickness: 0.4-0.45 mm
Blade length: 22 mm
Blade width: 15 mm
Blade spacing: 34mm
In the middle of the core wire, it uses 0.8 mm diameter copper wire and outside uses 2.5 mm diameter high quality plastic, which provides good compression resistance.
The circle is of 500 mm diameter, 25 cm construction spacing and 10 meters construction length of each bundle.
The main application of electric concertina razor wire is suitable for electronic fence. It is a branch of the electronic fence, scientific name is electronic blade fence. It improves the original electronic fence line by adding a layer of the blade on the outside, which makes people do not dare to touch when seeing the fence.
Blade specifications:
BTO - 22
Blade length: 22 mm
Blade width: 15 mm
Blade thickness: 0.45mm
Blade spacing: 34mm
Inner copper wire diameter: 0.8 mm
Outside diameter: 2.6 mm
Surface color: grey
Weight of electric razor wire: 55 grams per meter
Usually 100 meters per bundle, customized is also available but not more than 400 meters.
Electric Concertina Razor Wire:
Concertina Razor Wire Fence / Electric Concertina Razor Wire (safety fence):
There is no big difference with the common razor wire, it just adds a piece of copper wire in the conductor. If there is theft, cut, or any destroy action break the barbed wire, the corresponding alarm will ring. It plays a good role in high security protection. It is suitable for places need protection such as factory, construction site, communities, railway, highway, airport and so on.
Technical Specifications
After their installation, for more effectiveness, there are a number of alarms that when connected to the internal roll, can provide an electric shock to the person, at the time to try to violate the security perimeter, established with concertina wire.
- Diameters: 730mm, 980mm y 1.250mm.
- Coverage distance: 11M, 13M, 15M respectively. (Maximum advised)
- Insulators resistance to 30.000 volts, flame retardants, resistant to extreme environmental conditions.
- 100% Adaptable energisers simple and short circuit detection.
Electrified Concertina Razor Wire -001
Electrified Concertina Razor Wire -002
Electrified Concertina Razor Wire -003
Electrocoil has been designed to provide an intruder detection signal and if required can also provide a high voltage shock.
Low cost
Simple to erect
Effective
False alarm minimised
Specifications - Standard Coil Sizes
Coil Type
450E
730E
980E
Diameter (when packed)
450 mm
730 mm
980 mm
Stretch Distance (approx)
8 m
11 m
13 m
Inner Coil Diameter (approx)
250 mm
350 mm
500 mm
electrocoil,Concertina Wire Razor Electric Fencing System, Electrified Concertina Razor Wire
Outer Coil
Concertina razor wire.
Inner Coil
3 mm diameter smooth galvanised wire
Insulators
Modulated Poly-Vinyl Chloride compound ( Anti-UV ).
Fire resistant.
Resists 16000 Volts wet condition and 25000 Volts dry condition.
Energizer
Electrification distance: 1000 - 2000m includes :
220V / 12 V transformer.
Battery - 48 hour reservoir.
Battery charger.
Can be operated with 220 Volt supply or solar cells.
A standard 12 Volt car battery will provide approximately 10 days supply of power.
Note: Specifications may change without notice.
